AY Magic version for ZX81 was born

zaxon · May 2011

Modified Ay magic ,my previous interface for zx48. On board, ay chip based on Zonx interface but with stereo output and rampack 16 or 32 kilo on board. I back to life from long break.Regards,Zaxon.

beanz · May 2011

Any photos?

chev · May 2011

zaxon wrote: »

Modified Ay magic ,my previous interface for zx48. On board, ay chip based on Zonx interface but with stereo output and rampack 16 or 32 kilo on board. I back to life from long break.Regards,Zaxon.

So it's an AY interface for the '81 using the same ports as the Speccy 128? I'm fairly sure Bruno was asking about something like this a while back. Got any tracker stuff working on it?

Yerzmyey · May 2011

It's compatible with the most popular ZX81 standard: ZonX.

zxbruno · May 2011

These are of course good news, but if we had a way to enjoy the huge library of Spectrum AY tunes it would make it even better. I'm going to have to revisit the old topic I started a long time ago and see how complicated it would be. I do remember Gasman saying the tunes would sound different but not too much. Imagine being able to use all trackers and tunes that already exist and easily use them for the ZX81!

chev · May 2011

zxbruno wrote: »

These are of course good news, but if we had a way to enjoy the huge library of Spectrum AY tunes it would make it even better. I'm going to have to revisit the old topic I started a long time ago and see how complicated it would be. I do remember Gasman saying the tunes would sound different but not too much. Imagine being able to use all trackers and tunes that already exist and easily use them for the ZX81!

All you have to do is change the I/O ports to match whatever the ZX81 standard is. Providing you know what the clock of the AY is you just use an appropriate note table and it will sound exactly the same, assuming 50Hz interrupt driven sound, and that the 81 is running in fast mode.

Yerzmyey · May 2011

I second Andrew with that, it would be enough to have written a proper convector.

zxbruno · May 2011

Ok, let's make it interesting then. :)

Yerzmyey, how soon can we expect some ZX81 tunes from you? :)
Can the ZX81 AY interface be used to play digital samples? What about music made with Sample Tracker?
If a conversion tool can be created and if it can process files in batch mode, people will start hearing more about the ZX81. This will also drive sales of this new interface.

edit:

A ZX81 running demos in high-resolution and with AY sound can really compete with the Spectrum!

If the ZX81 can cope with digital samples, we might start seeing a lot of impressive stuff in terms of ZX81 demos. DivIDEo for the ZX81?

chev · May 2011

digital samples?

Yes, you just need enough RAM to store the data.

Sample Tracker?

Not sure how Sample Tracker works but if you give me the clock frequency and port addresses of the AY chip I can write a version of the Vortex Tracker playback routine to support it. And I'm pretty sure Vortex can handle Sample Tracker format files.

If a conversion tool can be created

Well you don't really need that, since the raw data doesn't need any modification.

A ZX81 running demos in high-resolution and with AY sound can really compete with the Spectrum!

That would be trickier. There may not be enough t-states left in the IM2 routine after pushing all of the video data to do much with the AY.

If the ZX81 can cope with digital samples, we might start seeing a lot of impressive stuff in terms of ZX81 demos. DivIDEo for the ZX81?

Well first you'd need a 16-bit IDE device. Not sure if the existing ones are full 16-bit or simple 8-bit interfaces.

rich_chandler · May 2011

zxbruno wrote: »

A ZX81 running demos in high-resolution and with AY sound can really compete with the Spectrum!

In shades of grey...

Yerzmyey · May 2011

aowen:

> Not sure how Sample Tracker works but if you give me the clock frequency and port addresses of the AY chip I can write a version of the Vortex Tracker playback routine to support it. And I'm pretty sure Vortex can handle Sample Tracker format files.
Well you don't really need that, since the raw data doesn't need any modification.
*********
Well, not really, however I wouldn't start from such hard things.
For the start it would be really cool to have a regular VortexTracker procedure ported to ZX81 ports + *.p file output (with player). :)

guesser · May 2011

karingal wrote: »

In shades of grey...

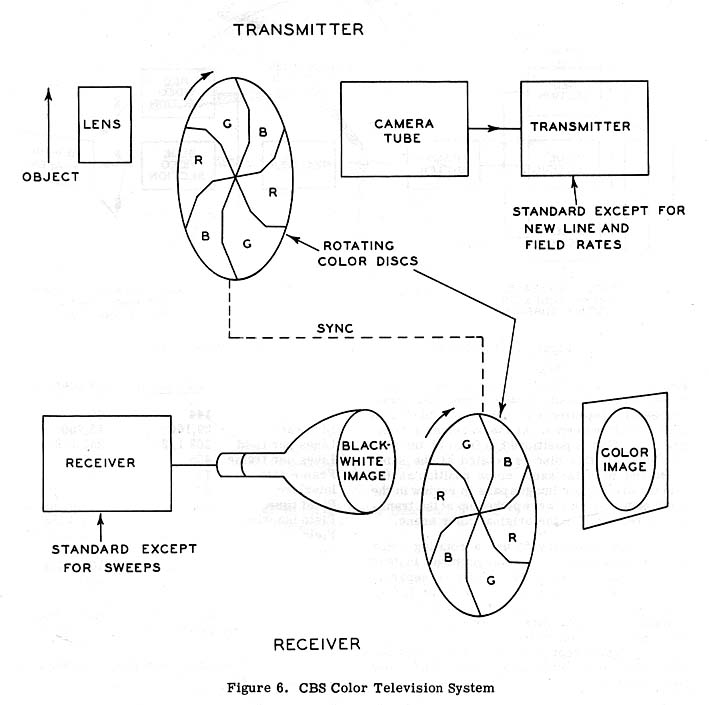

you just need a CBS colour wheel!

hmm, control a stepper motor driver from an I/O output... MUST STOP SELF DAYDREAMING BEFORE DOING SOMETHING STUPID LIKE BUILD ONE :-o

:)

rich_chandler · May 2011

guesser wrote: »

you just need a CBS colour wheel!

hmm, control a stepper motor driver from an I/O output... MUST STOP SELF DAYDREAMING BEFORE DOING SOMETHING STUPID LIKE BUILD ONE :-o

:)

Just buy a Spectrum off eBay, much easier...

chev · May 2011

Yerzmyey wrote: »

aowen:

> Not sure how Sample Tracker works but if you give me the clock frequency and port addresses of the AY chip I can write a version of the Vortex Tracker playback routine to support it. And I'm pretty sure Vortex can handle Sample Tracker format files.
Well you don't really need that, since the raw data doesn't need any modification.
*********
Well, not really, however I wouldn't start from such hard things.
For the start it would be really cool to have a regular VortexTracker procedure ported to ZX81 ports + *.p file output (with player). :)

I think you're missing my point. I need the AY clock frequency and port addresses of the AY chip *in order* to port the Vortex Tracker player code to the ZX81. Unless I have the AY clock speed I can't generate the correct values for the required tone table. And unless I have the AY's I/O ports, you won't be able to hear anything.

zxbruno · May 2011

Well, found my old ZX81 topic:

http://www.rwapservices.co.uk/ZX80_ZX81/forums/ay-tunes-on-a-zx81-t12.html

And here's some interesting info that was give to me by Mike Whynne (creator of EightyOne). Maybe software is all we need to turn the AY Magic into an all-in-one interface?

Board        Frequency   Register   Select      Data
Quicksilva   0.8125MHz   0x7fff     0x7ffe      (Memory Mapped, Write Only)
Zon-X        1.625MHz    0xdf       0x0f
Fuller       1.625MHz    0x3f       0x5f
Sinclair     1.7734MHz   0xfdff     0xfdbf
Timex        1.764MHz    0xf5       0xf6

On that old topic you can see the participation of Mike Whynne, Gasman, etc. The creator of SpecAY also stopped by!

Yerzmyey · May 2011

aowen wrote: »

I think you're missing my point. I need the AY clock frequency and port addresses of the AY chip *in order* to port the Vortex Tracker player code to the ZX81. Unless I have the AY clock speed I can't generate the correct values for the required tone table. And unless I have the AY's I/O ports, you won't be able to hear anything.

yes, that's what I meant.

chev · May 2011

Thanks. This is what I needed:

Board        Frequency   Register   Data
Zon-X        1.625MHz    0xdf       0x0f

I can see why the OP went for Zon-X rather than Quicksilva compatibility. Once I find my spreadsheet for generating tone tables it will take mere minutes to update the Vortex Tracker routine. However I've got a huge amount of revising to do tonight for an exam tomorrow so you may have to wait until Saturday. On the other hand I'll probably get bored and do it tonight.

rwap · May 2011

That is really good news - it is good to see Zaxon back on the scene as well - if we can get AY tunes converted to run on the ZX81, then with the ZXpand interface and the release of Nanako in Classic Japanese Monster Castle, 2011 has been a really successful 30th anniversary for the ZX81 (so far!)

For those not in the know, ZXpand is an SD card interface, with built in configurable 32K RAM. You can even solder a joystick port to the board. We are also working on a daughter-board for ZXpand which will provide AY output based on ZonX too !!

chev · May 2011

The ZXpand is a nifty interface, but did it have to be three times the size of the original MOBO!?

zxbruno · May 2011

I must find out if the ZXpand is 8-bit or 16-bit. Must ask SirMorris.

zaxon · May 2011

I just made hardware, Yerzmyey give me clear instructions about stereo, canal mix ,etc for real use. Like my previous AY magic for zx48. Compare my AY magic to AY kempston,made by Lotharek...and cry. My device is projected by proffesional electronic designer, boards is made in good pcb factory i use quality parts, not save fev penny on quartz.
Just compare: real play from my ay magic:

And other:

chev · May 2011

Oddly enough it looks as if the first note table in ProTracker (which the notes say is not interesting) is actually for an AY clocked at 3.25Mhz/2. This is exactly what is needed so there was no need to do the note calculation.

So here's a new version of my ProTracker Extreme playback code (music has to be in PT3 v3.6 format and you have to cut the 100 byte header off it). I've cleaned the code up a bit since last time. The routine now supports Zon-X (untested), TC2068/Pentagon, and Spectrum 128. You will need to comment out / uncomment for machines other than the ZX81 (and change the start address).

; ProTracker3 Extreme (P3X) player
; for ZX81 (Zon-X), TC2068, and Spectrum 128

; Copyright (c) 2004, 2007 S.V.Bulba <vorobey@mail.khstu.ru>

; http://bulba.untergrund.net (http://bulba.at.kz)
; Formatted by Gasman for Pasmo and optimized by Cheveron

; variables are 541 bytes long and follow the player
; music is in ProTracker3.6 format (minus the 100 byte header)

	org	12288			; any address is valid

init:
	ld	hl, music - 100
	jr	p3x_init
	jp	play
	jr	mute

setup:
	defb	0

crpsptr:
	defw	0

checklp:
	ld	hl, setup
	set	7, (hl)
	bit	0, (hl)
	ret	z
	pop	hl
	ld	hl, delycnt
	inc	(hl)
	ld	hl, chana + chp_ntskcn
	inc	(hl)

mute:
	xor	a
	ld	h, a
	ld	l, a
	ld	(ayregs + ar_ampla), a
	ld	(ayregs + ar_amplb), hl
	jp	rout_a0

p3x_init:
	ld	(modaddr + 1), hl
	ld	(mdaddr2 + 1), hl
	push	hl
	ld	de, 100
	add	hl, de
	ld	a, (hl)
	ld	(p3x_delay + 1), a
	push	hl
	pop	ix
	add	hl, de
	ld	(crpsptr), hl
	ld	e, (ix + 2)
	add	hl, de
	inc	hl
	ld	(lposptr + 1), hl
	pop	de
	ld	l, (ix + 3)
	ld	h, (ix + 4)
	add	hl, de
	ld	(patsptr + 1), hl
	ld	hl, 169
	add	hl, de
	ld	(ornptrs + 1), hl
	ld	hl, 105
	add	hl, de
	ld	(samptrs + 1), hl
	ld	hl, setup
	res	7, (hl)

	ld	de, t_pack		; note table data depacker
	ld	bc, t1_ + (2 * 49) - 1

tp_0:
	ld	a, (de)
	inc	de
	cp	01eh
	jr	nc, tp_1
	ld	h, a
	ld	a, (de)
	ld	l, a
	inc	de
	jr	tp_2
tp_1:
	push	de
	ld	d, 0
	ld	e, a
	add	hl, de
	add	hl, de
	pop	de
tp_2:
	ld	a, h
	ld	(bc), a
	dec	bc
	ld	a, l
	ld	(bc), a
	dec	bc
	sub	0f0h
	jr	nz, tp_0
	ld	hl, vars
	ld	(hl), a
	ld	de, vars + 1
	ld	bc, var0end - vars - 1
	ldir
	inc	a
	ld	(delycnt), a
	ld	hl, 0f001h
	ld	(chana + chp_ntskcn), hl
	ld	(chanb + chp_ntskcn), hl
	ld	(chanc + chp_ntskcn), hl
	ld	hl, emptysamorn
	ld	(adinpta + 1), hl
	ld	(chana + chp_ornptr), hl
	ld	(chanb + chp_ornptr), hl
	ld	(chanc + chp_ornptr), hl

					; select AY tone table
	xor	a			; 1.625Mhz (ZX81)
;	ld	a, 1			; 1.7734Mhz (128)
;	ld	a, 2			; 1.75Mhz (TC2068)
;	ld	a, 3			; 1.75Mhz (half tone lower)
	rla
	and 007h

; Note Table Creator (c) Ivan Roshin
; a - notetablenumber * 2 + versionfornotetable
; (xx1b - 3.xx..3.4r, xx0b - 3.4x..3.6x..vtii1.0)

	ld	hl, nt_data
	push	de
	ld	d, b
	add	a, a
	ld	e, a
	add	hl, de
	ld	e, (hl)
	inc	hl
	srl	e
	sbc	a, a
	and	167 			; #00 (nop) or #a7 (and	a)
	ld	(l3), a
	ex	de, hl
	pop	bc
	add	hl, bc
	ld	a, (de)
	add	a, t_ & 255
	ld	c, a
	adc	a, t_ >> 8
	sub	c
	ld	b, a
	push	bc
	ld	de, nt_
	push	de
	ld	b, 00ch

l1:
	push	bc
	ld	c, (hl)
	inc	hl
	push	hl
	ld	b, (hl)
	push	de
	ex	de, hl
	ld	de, 00017h
	defb	221			; ld ixh, 8
	ld	h, 8			;

l2:
	srl b
	rr c

l3:
	add	hl, de			; will be replaced by and	a or nop
	ld	a, c
	adc	a, d
	ld	(hl), a
	inc	hl
	ld	a, b
	adc	a, d
	ld	(hl), a
	add	hl, de
	defb	221			; dec ixh
	dec	h			;
	jr	nz, l2
	pop	de
	inc	de
	inc	de
	pop	hl
	inc	hl
	pop	bc
	djnz	l1
	pop	hl
	pop	de
	ld	a, e
	cp	tcold_1 & 255
	jr	nz, corr_1
	ld	a, 253
	ld	(nt_ + 46), a

corr_1:
	ld	a, (de)
	and	a
	jr	z, tc_exit
	rra
	push	af
	add	a, a
	ld	c, a
	add	hl, bc
	pop	af
	jr	nc, corr_2
	dec	(hl)
	dec	(hl)

corr_2:
	inc	(hl)
	and	a
	sbc	hl, bc
	inc	de
	jr	corr_1

tc_exit:
	pop	af

; Vol Table Creator (c) Ivan Roshin
; a - versionforvolumetable (0..4 - 3.xx..3.4x;
; 5.. - 3.5x..3.6x..vtii1.0)

	cp	5
	ld	hl, 17
	ld	d, h
	ld	e, h
	ld	a, 23
	jr	nc, m1
	dec	l
	ld	e, l
	xor	a

m1:
	ld	(m2), a
	ld	ix, vt_ + 16
	ld	c, 16

p3x_initv2:
	push	hl
	add	hl, de
	ex	de, hl
	sbc	hl, hl

p3x_initv1:
	ld	a, l

m2:
	ld	a, l
	ld	a, h
	adc	a, 0
	ld	(ix + 0), a
	inc	ix
	add	hl, de
	inc	c
	ld	a, c
	and	15
	jr	nz, p3x_initv1
	pop	hl
	ld	a, e
	cp	119
	jr	nz, m3
	inc	e

m3:
	ld	a, c
	and	a
	jr	nz, p3x_initv2
	jp	rout_a0


pd_orsm:
	ld	(ix + 8), 0		; pattern decoder
	call	setorn
	ld	a, (bc)
	inc	bc
	rrca

pd_sam:
	add	a, a

pd_sam_:
	ld	e, a
	ld	d, 0

samptrs:
	ld	hl, 8481
	add	hl, de
	ld	e, (hl)
	inc	hl
	ld	d, (hl)

modaddr
	ld	hl, 8481
	add	hl, de
	ld	(ix + 3), l
	ld	(ix + 4), h
	jr	pd_loop

pd_vol:
	rlca
	rlca
	rlca
	rlca
	ld	(ix + 16), a
	jr	pd_lp2

pd_eoff:
	ld	(ix + 8), a
	ld	(ix - 12), a
	jr	pd_lp2

pd_sore:
	dec	a
	jr	nz, pd_env
	ld	a, (bc)
	inc	bc
	ld	(ix + 5), a
	jr	pd_lp2

pd_env:
	call	setenv
	jr	pd_lp2

pd_orn:
	call	setorn
	jr	pd_loop

pd_esam:
	ld	(ix + 8), a
	ld	(ix - 12), a
	call	nz, setenv
	ld	a, (bc)
	inc	bc
	jr	pd_sam_

ptdecod:
	ld	a, (ix + 6)
	ld	(prnote + 1), a
	ld	l, (ix - 6)
	ld	h, (ix - 5)
	ld	(prslide + 1), hl

pd_loop:
	ld	de, 8208

pd_lp2:
	ld	a, (bc)
	inc	bc
	add	a, e
	jr	c, pd_orsm
	add	a, d
	jr	z, pd_fin
	jr	c, pd_sam
	add	a, e
	jr	z, pd_rel
	jr	c, pd_vol
	add	a, e
	jr	z, pd_eoff
	jr	c, pd_sore
	add	a, 060h
	jr	c, pd_note
	add	a, e
	jr	c, pd_orn
	add	a, d
	jr	c, pd_nois
	add	a, e
	jr	c, pd_esam
	add	a, a
	ld	e, a
	ld	hl, spccoms + 57120
	add	hl, de
	ld	e, (hl)
	inc	hl
	ld	d, (hl)
	push	de
	jr	pd_loop

pd_nois:
	ld	(ns_base), a
	jr	pd_lp2

pd_rel:
	res	0, (ix + 9)
	jr	pd_res

pd_note:
	ld	(ix + 6), a
	set	0, (ix + 9)
	xor	a

pd_res:
	ld	(pdsp_ + 1), sp
	ld	sp, ix
	ld	h, a
	ld	l, a
	push	hl
	push	hl
	push	hl
	push	hl
	push	hl
	push	hl

pdsp_
	ld	sp, 12593

pd_fin:
	ld	a, (ix + 5)
	ld	(ix + 15), a
	ret

c_portm:
	res	2, (ix + 9)
	ld	a, (bc)
	inc	bc
	inc	bc
	inc	bc
	ld	(ix + 10), a
	ld	(ix - 7), a
	ld	de, nt_
	ld	a, (ix + 6)
	ld	(ix + 7), a
	add	a, a
	ld	l, a
	ld	h, 0
	add	hl, de
	ld	a, (hl)
	inc	hl
	ld	h, (hl)
	ld	l, a
	push	hl

prnote:
	ld	a, 62
	ld	(ix + 6), a
	add	a, a
	ld	l, a
	ld	h, 0
	add	hl, de
	ld	e, (hl)
	inc	hl
	ld	d, (hl)
	pop	hl
	sbc	hl, de
	ld	(ix + 13), l
	ld	(ix + 14), h
	ld	e, (ix - 6)
	ld	d, (ix - 5)

prslide:
	ld	de, 4369
	ld	(ix - 6), e
	ld	(ix - 5), d
	ld	a, (bc)
	inc	bc
	ex	af, af'
	ld	a, (bc)
	inc	bc
	and	a
	jr	z, nosig
	ex	de, hl

nosig:
	sbc	hl, de
	jp	p, set_stp
	cpl
	ex	af, af'
	neg
	ex	af, af'

set_stp:
	ld	(ix + 12), a
	ex	af, af'
	ld	(ix + 11), a
	ld	(ix - 2), 0
	ret

c_gliss:
	set	2, (ix + 9)
	ld	a, (bc)
	inc	bc
	ld	(ix + 10), a
	and	a
	jr	nz, gl36
	ld	a, 6			; P3X version is always PT3.6
	cp	7
	sbc	a, a
	inc	a

gl36:
	ld	(ix - 7), a
	ld	a, (bc)
	inc	bc
	ex	af, af'
	ld	a, (bc)
	inc	bc
	jr	set_stp

c_smpos:
	ld	a, (bc)
	inc	bc
	ld	(ix - 11), a
	ret

c_orpos:
	ld	a, (bc)
	inc	bc
	ld	(ix - 12), a
	ret

c_vibrt:
	ld	a, (bc)
	inc	bc
	ld	(ix - 1), a
	ld	(ix - 2), a
	ld	a, (bc)
	inc	bc
	ld	(ix + 0), a
	xor a
	ld	(ix - 7), a
	ld	(ix - 6), a
	ld	(ix - 5), a
	ret

c_engls
	ld	a, (bc)
	inc	bc
	ld	(env_del + 1), a
	ld	(curedel), a
	ld	a, (bc)
	inc	bc
	ld	l, a
	ld	a, (bc)
	inc	bc
	ld	h, a
	ld	(esldadd + 1), hl
	ret

c_p3x_delay:
	ld	a, (bc)
	inc	bc
	ld	(p3x_delay + 1), a
	ld	(delycnt), a		; bugfix by lee_dc
	ret

setenv:
	ld	(ix + 8), e
	ld	(ayregs + ar_envtp), a
	ld	a, (bc)
	inc	bc
	ld	h, a
	ld	a, (bc)
	inc	bc
	ld	l, a
	ld	(envbase), hl
	xor	a
	ld	(ix - 12), a
	ld	(curedel), a
	ld	h, a
	ld	l, a
	ld	(curesld), hl
c_nop:
	ret

setorn:
	add	a, a
	ld	e, a
	ld	d, 0
	ld	(ix - 12), d

ornptrs:
	ld	hl, 8481
	add	hl, de
	ld	e, (hl)
	inc	hl
	ld	d, (hl)

mdaddr2:
	ld	hl, 8481
	add	hl, de
	ld	(ix + 1), l
	ld	(ix + 2), h
	ret

;all 16 addresses to protect from broken pt3 modules

spccoms:
	defw	c_nop
	defw	c_gliss
	defw	c_portm
	defw	c_smpos
	defw	c_orpos
	defw	c_vibrt
	defw	c_nop
	defw	c_nop
	defw	c_engls
	defw	c_p3x_delay
	defw	c_nop
	defw	c_nop
	defw	c_nop
	defw	c_nop
	defw	c_nop
	defw	c_nop

chregs:
	xor	a
	ld	(ampl), a
	bit	0, (ix + 21)
	push	hl
	jp	z, ch_exit
	ld	(csp_ + 1), sp
	ld	l, (ix + 13)
	ld	h, (ix + 14)
	ld	sp, hl
	pop	de
	ld	h, a
	ld	a, (ix + 0)
	ld	l, a
	add	hl, sp
	inc	a
	cp	d
	jr	c, ch_orps
	ld	a, e

ch_orps:
	ld	(ix + 0), a
	ld	a, (ix + 18)
	add	a, (hl)
	jp	p, ch_ntp
	xor a

ch_ntp:
	cp	96
	jr	c, ch_nok
	ld	a, 95

ch_nok:
	add	a, a
	ex	af, af'
	ld	l, (ix + 15)
	ld	h, (ix + 16)
	ld	sp, hl
	pop	de
	ld	h, 0
	ld	a, (ix + 1)
	ld	b, a
	add	a, a
	add	a, a
	ld	l, a
	add	hl, sp
	ld	sp, hl
	ld	a, b
	inc	a
	cp	d
	jr	c, ch_smps
	ld	a, e

ch_smps:
	ld	(ix + 1), a
	pop	bc
	pop	hl
	ld	e, (ix + 8)
	ld	d, (ix + 9)
	add	hl, de
	bit	6, b
	jr	z, ch_noac
	ld	(ix + 8), l
	ld	(ix + 9), h

ch_noac:
	ex	de, hl
	ex	af, af'
	ld	l, a
	ld	h, 0
	ld	sp, nt_
	add	hl, sp
	ld	sp, hl
	pop	hl
	add	hl, de
	ld	e, (ix + 6)
	ld	d, (ix + 7)
	add	hl, de

csp_:
	ld	sp, 03131h
	ex	(sp), hl
	xor	a
	or	(ix + 5)
	jr	z, ch_amp
	dec	(ix + 5)
	jr	nz, ch_amp
	ld	a, (ix + 22)
	ld	(ix + 5), a
	ld	l, (ix + 23)
	ld	h, (ix + 24)
	ld	a, h
	add	hl, de
	ld	(ix + 6), l
	ld	(ix + 7), h
	bit	2, (ix + 21)
	jr	nz, ch_amp
	ld	e, (ix + 25)
	ld	d, (ix + 26)
	and	a
	jr	z, ch_stpp
	ex	de, hl

ch_stpp:
	sbc	hl, de
	jp	m, ch_amp
	ld	a, (ix + 19)
	ld	(ix + 18), a
	xor	a
	ld	(ix + 5), a
	ld	(ix + 6), a
	ld	(ix + 7), a

ch_amp:
	ld	a, (ix + 2)
	bit	7, c
	jr	z, ch_noam
	bit	6, c
	jr	z, ch_amin
	cp	15
	jr	z, ch_noam
	inc	a
	jr	ch_svam

ch_amin:
	cp	241
	jr	z, ch_noam
	dec	a

ch_svam:
	ld	(ix + 2), a

ch_noam:
	ld	l, a
	ld	a, b
	and	15
	add	a, l
	jp	p, ch_apos
	xor	a

ch_apos:
	cp	16
	jr	c, ch_vol
	ld	a, 15

ch_vol:
	or	(ix + 28)
	ld	l, a
	ld	h, 0
	ld	de, vt_
	add	hl, de
	ld	a, (hl)

ch_env:
	bit	0, c
	jr	nz, ch_noen
	or	(ix + 20)

ch_noen:
	ld	(ampl), a
	bit	7, b
	ld	a, c
	jr	z, no_ensl
	rla
	rla
	sra	a
	sra	a
	sra	a
	add	a, (ix + 4)
	bit	5, b
	jr	z, no_enac
	ld	(ix + 004h), a

no_enac:
	ld	hl, addtoen + 1
	add	a, (hl)
	ld	(hl), a
	jr	ch_mix

no_ensl:
	rra
	add	a, (ix + 3)
	ld	(addtons), a
	bit	5, b
	jr	z, ch_mix
	ld	(ix + 3), a

ch_mix:
	ld	a, b
	rra
	and	72

ch_exit:
	ld	hl, ayregs + ar_mixer
	or	(hl)
	rrca
	ld	(hl), a
	pop	hl
	xor	a
	or	(ix + 10)
	ret	z
	dec	(ix + 10)
	ret	nz
	xor	(ix + 21)
	ld	(ix + 21), a
	rra
	ld	a, (ix + 11)
	jr	c, ch_ondl
	ld	a, (ix + 12)

ch_ondl:
	ld	(ix + 10), a
	ret

play:
	xor	a
	ld	(addtoen + 1), a
	ld	(ayregs + ar_mixer), a
	dec	a
	ld	(ayregs + ar_envtp), a
	ld	hl, delycnt
	dec	(hl)
	jr	nz, pl2
	ld	hl, chana + chp_ntskcn
	dec	(hl)
	jr	nz, pl1b

adinpta:
	ld	bc, 00101h
	ld	a, (bc)
	and	a
	jr	nz, pl1a
	ld	d, a
	ld	(ns_base), a
	ld	hl, (crpsptr)
	inc	hl
	ld	a, (hl)
	inc	a
	jr	nz, plnlp
	call	checklp

lposptr:
	ld	hl, 8481
	ld	a, (hl)
	inc	a
plnlp:
	ld	(crpsptr), hl
	dec	a
	add	a, a
	ld	e, a
	rl	d

patsptr:
	ld	hl, 8481
	add	hl, de
	ld	de, (modaddr + 1)
	ld	(psp_ + 1), sp
	ld	sp, hl
	pop	hl
	add	hl, de
	ld	b, h
	ld	c, l
	pop	hl
	add	hl, de
	ld	(adinptb + 1), hl
	pop	hl
	add	hl, de
	ld	(adinptc + 1), hl

psp_:
	ld	sp, 12593

pl1a:
	ld	ix, chana + 12
	call	ptdecod
	ld	(adinpta + 1), bc

pl1b:
	ld	hl, chanb + chp_ntskcn
	dec	(hl)
	jr	nz, pl1c
	ld	ix, chanb + 12

adinptb:
	ld	bc, 257
	call	ptdecod
	ld	(adinptb + 1), bc

pl1c:
	ld	hl, chanc + chp_ntskcn
	dec	(hl)
	jr	nz, p3x_delay
	ld	ix, chanc + 12

adinptc:
	ld	bc, 257
	call	ptdecod
	ld	(adinptc + 1), bc

p3x_delay:
	ld	a, 62
	ld	(delycnt), a

pl2:
	ld	ix, chana
	ld	hl, (ayregs + ar_tona)
	call	chregs
	ld	(ayregs + ar_tona), hl
	ld	a, (ampl)
	ld	(ayregs + ar_ampla), a
	ld	ix, chanb
	ld	hl, (ayregs + ar_tonb)
	call	chregs
	ld	(ayregs + ar_tonb), hl
	ld	a, (ampl)
	ld	(ayregs + ar_amplb), a
	ld	ix, chanc
	ld	hl, (ayregs + ar_tonc)
	call	chregs
	ld	(ayregs + ar_tonc), hl
	ld	hl, (ns_base_addtons)
	ld	a, h
	add	a, l
	ld	(ayregs + ar_noise), a

addtoen:
	ld	a, 62
	ld	e, a
	add	a, a
	sbc	a, a
	ld	d, a
	ld	hl, (envbase)
	add	hl, de
	ld	de, (curesld)
	add	hl, de
	ld	(ayregs + ar_env), hl
	xor	a
	ld	hl, curedel
	or	(hl)
	jr	z, rout_a0
	dec	(hl)
	jr	nz, rout

env_del:
	ld	a, 62
	ld	(hl), a

esldadd:
	ld	hl, 8481
	add	hl, de
	ld	(curesld), hl

rout:
	xor	a

rout_a0:
	ld	de, #df0f		; Zon-X ports
	ld	bc, #ffdf		;

;	ld	de, #f5f6		; TC2068 ports
;	ld	bc, #fff5		;

;	ld	de, #ffbf		; 128 ports
;	ld	bc, #fffd		;

	ld	hl, ayregs

code continued in next post ...

chev · May 2011

lout:
	out	(c), a
	ld	c, e			; Zon-X / TC2068
;	ld	b, e			; 128
	outi
	ld	c, d			; Zon-X / TC2068
;	ld	b, d			; 128
	inc	a
	cp	00dh
	jr	nz, lout
	out	(c), a
	ld	a, (hl)
	and	a
	ret	m
	ld	c, e			; Zon-X / TC2068
;	ld	b, e			; 128
	out	(c), a
	ret

nt_data:
	defb	(t_new_0 - t1_) * 2
	defb	tcnew_0 - t_
	defb	(t_old_0 - t1_) * 2 + 1
	defb	tcold_0 - t_
	defb	(t_new_1 - t1_) * 2 + 1
	defb	tcnew_1 - t_
	defb	(t_old_1 - t1_) * 2 + 1
	defb	tcold_1 - t_
	defb	(t_new_2 - t1_) * 2
	defb	tcnew_2 - t_
	defb	(t_old_2 - t1_) * 2
	defb	tcold_2 - t_
	defb	(t_new_3 - t1_) * 2
	defb	tcnew_3 - t_
	defb	(t_old_3 - t1_) * 2
	defb	tcold_3 - t_

t_:

tcold_0:
	defb	#00 + 1, #04 + 1, #08 + 1, #0a + 1, #0c + 1, #0e + 1
	defb	#12 + 1, #14 + 1, #18 + 1, #24 + 1, #3c + 1, 0
tcold_1:
	defb	#5c + 1, 0

tcold_2:
	defb	#30 + 1, #36 + 1, #4c + 1, #52 + 1, #5e + 1, #70 + 1
	defb	#82, #8c, #9c, #9e, #a0, #a6, #a8, #aa, #ac, #ae, #ae, 0

tcnew_3:
	defb	#56 + 1

tcold_3:
	defb	#1e + 1, #22 + 1, #24 + 1, #28 + 1, #2c + 1, #2e + 1
	defb	#32 + 1, #be + 1, 0

tcnew_0:
	defb	#1c + 1, #20 + 1, #22 + 1, #26 + 1, #2a + 1, #2c + 1
	defb	#30 + 1, #54 + 1, #bc + 1, #be + 1, 0

tcnew_1 equ tcold_1

tcnew_2:
	defb	#1a + 1, #20 + 1, #24 + 1, #28 + 1, #2a + 1, #3a + 1
	defb	#4c + 1, #5e + 1, #ba + 1, #bc + 1, #be + 1, 0

emptysamorn equ $ - 1

	defb	1, 0;, #90 ;delete #90 if you don't need default sample

;first 12 values of tone tables (packed)

t_pack	defb	#06ec * 2/256, #06ec * 2	; Zon-X
	defb	#0755 - #06ec
	defb	#07c5 - #0755
	defb	#083b - #07c5
	defb	#08b8 - #083b
	defb	#093d - #08b8
	defb	#09ca - #093d
	defb	#0a5f - #09ca
	defb	#0afc - #0a5f
	defb	#0ba4 - #0afc
	defb	#0c55 - #0ba4
	defb	#0d10 - #0c55
	defb	#066d * 2/256, #066d * 2	; 128
	defb	#06cf - #066d
	defb	#0737 - #06cf
	defb	#07a4 - #0737
	defb	#0819 - #07a4
	defb	#0894 - #0819
	defb	#0917 - #0894
	defb	#09a1 - #0917
	defb	#0a33 - #09a1
	defb	#0acf - #0a33
	defb	#0b73 - #0acf
	defb	#0c22 - #0b73
	defb	#0cda - #0c22
	defb	#0704 * 2/256, #0704 * 2	; TC2068
	defb	#076e - #0704
	defb	#07e0 - #076e
	defb	#0858 - #07e0
	defb	#08d6 - #0858
	defb	#095c - #08d6
	defb	#09ec - #095c
	defb	#0a82 - #09ec
	defb	#0b22 - #0a82
	defb	#0bcc - #0b22
	defb	#0c80 - #0bcc
	defb	#0d3e - #0c80
	defb	#07e0 * 2/256, #07e0 * 2	; TC2068 - half tone
	defb	#0858 - #07e0
	defb	#08e0 - #0858
	defb	#0960 - #08e0
	defb	#09f0 - #0960
	defb	#0a88 - #09f0
	defb	#0b28 - #0a88
	defb	#0bd8 - #0b28
	defb	#0c80 - #0bd8
	defb	#0d60 - #0c80
	defb	#0e10 - #0d60
	defb	#0ef8 - #0e10

; channel data offsets

chp_psinor	equ 0
chp_psinsm	equ 1
chp_cramsl	equ 2
chp_crnssl	equ 3
chp_crensl	equ 4
chp_tslcnt	equ 5
chp_crtnsl	equ 6
chp_tnacc	equ 8
chp_conoff	equ 10
chp_onoffd	equ 11			; ix for ptdecod here ( + 12)
chp_offond	equ 12
chp_ornptr	equ 13
chp_samptr	equ 15
chp_nntskp	equ 17
chp_note	equ 18
chp_sltont	equ 19
chp_env_en	equ 20
chp_flags	equ 21			; enabled - 0, simplegliss - 2
chp_tnsldl	equ 22
chp_tslstp	equ 23
chp_tndelt	equ 25
chp_ntskcn	equ 27
chp_volume	equ 28

vars:
chana	ds 29
chanb	ds 29
chanc	ds 29
delycnt	defb	0			; globalvars
curesld	defw	0
curedel	defb	0

ns_base_addtons:
ns_base	defb	0
addtons	defb	0

ar_tona equ 0				; word 1
ar_tonb equ 2				; word 1
ar_tonc equ 4				; word 1
ar_noise equ 6				; byte 1
ar_mixer equ 7				; byte 1
ar_ampla equ 8				; byte 1
ar_amplb equ 9				; byte 1
ar_amplc equ 10				; byte 1
ar_env equ 11				; word 1
ar_envtp equ 13				; byte 1
ar_size equ 14				; byte 1

ayregs equ $

vt_:	defb	"volume table"		; created volume table address
	defs	244

envbase:
	equ vt_ + 14

t1_:
	equ vt_ + 16			; tone tables data depacked here

t_old_1	equ t1_
t_old_2	equ t_old_1 + 24
t_old_3	equ t_old_2 + 24
t_old_0	equ t_old_3 + 2
t_new_0	equ t_old_0
t_new_1	equ t_old_1
t_new_2	equ t_new_0 + 24
t_new_3	equ t_old_3

nt_:	defb	"note table"		 ; created note table address
	defs	182

;local vars
ampl equ ayregs + ar_amplc
var0end	equ vt_ + 16			; p3x_init zeroes from vars to
					; var0end - 1
varsend equ $
mdladdr equ $

music:
	incbin	"track.p3x"		; protracker 3.6 format track
					; excluding 100 byte header

andy_rea · August 2011

Whooey i'm here....:D

I love it when things i'm doing end up else where...

but yeah my PT3 player is based very much on Sergey Bulba's work, i asked for his permission to use his code and he said yes :p

But it's much more modified than anybody would imagine, the reason? So that ZX81 can still run in SLOW, with full display and ability to run other code in the spare time left over. it was tricky, firstly i had to overcome the use of the alternate af' in Sergey's code, this was more complicated than just bunging it into another register as ZX81 interpreter uses pretty much all of them ! So before any code is run i save alt hl' on stack and then use that, since as user code can't run till final RET all is good.

Second and quite difficult task was to do away with the Stack pointer manipulation, it is used as a kind of direct index into various tables, this again was complicated by the fact that as times there are no spare registers to use. but i managed it in the end.

Third change all IX to IY, IX is used by zx81 NMI interrupt routine as a jump vector, hopefully the player has finished by the time the next NMI jump comes but that cannot be garanteed. your not really supposed to use The IY register in SLOW mode either but since as only the interrupt routine can stop the player part way through it is accounted for, other wise once player finished that quark IY is restored to whatever it was before hand.

and lastly a special interrupt handler is written with minimal controls built in for player, monitors a memory address. 255 = mute and stop handler, 1 = play every 1/50th second, 0 = mute and stop (but remeber position). in very execeptional cases the player has not exitied before the next NMI jump comes along, the handler can cope with recurrsive calls :lol:

So.... i give credit to Sergey Bulba for a great bit of coding.

Regards Andy

zxbruno · August 2011

Now that you're here you must stick around. :razz:
Yerzmyey just sent me a YouTube link with one of his tunes but it sounds slower that it should be? Is this because it was written on Spectrum or PC tracker software or is it just a matter of adjusting something on the ZX81 player side?

Welcome to WOS!

andy_rea · August 2011

lots and lots slower like 50Hz playback instaed of 60Hz ?

the ZX81's 50Hz varies slightly from machine to machine as the ceramic oscilators used are a bit *crap* but lets say for example a 2 minute track played 1% slow should only be about 1 and a half seconds longer, it could be an aural illusion because it is playing at a lower pitch.

Send me the link or post it here and i'll have a look, if i can i'll hook up a real spectrum :o that will be fun.... and do some comparisons.

i was thinking about the tone tables used in the PT3 playback module too, i might see if i can make it always use table 0, thats the one with the ZON-x values in it, then they should sound alot closer in pitch when compared side by side.

It could also be a bug in the program and it is playing at a speed +/- 1 maybe...

Andy

AY Magic version for ZX81 was born

Comments
