Contriver M3 Mouse

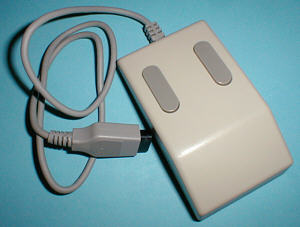

Contriver M3 Mouse: top view (click for larger image, 56k)

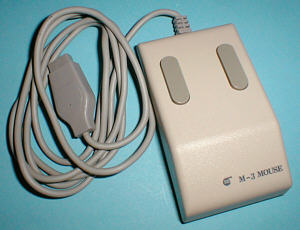

top view (click for larger image, 56k) 		Contriver M3 Mouse: top view (click for larger image, 67k)
top view (click for larger image, 67k)
buttons 2
mechanism ball, optical sampling
interface C64 (DB 9f)
made by Contriver
controller CONTRIVER 291 (NEC)
MC14584BCP (Motorola)
M3 MOUSE (?)
74LS05 (?)
1 discrete transistor 		CONTRIVER 291 (NEC)
MN4584B (?)
M3 MOUSE (?)
74LS05 (?)
1 discrete transistor
size:   width
  length
  height
  weight
63 mm
110 mm
34 mm
155 g
63 mm
110 mm
34 mm
180 g
manufacturing date 1988 1987

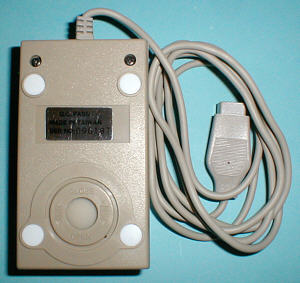

Contriver M3 Mouse: bottom view (click for larger image, 56k)

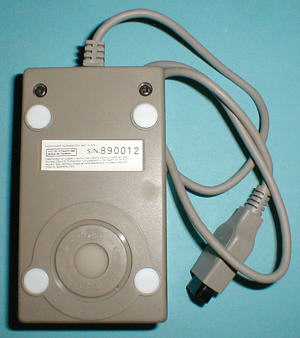

bottom view (click for larger image, 56k) 		Contriver M3 Mouse: bottom view (click for larger image, 75k)
bottom view (click for larger image, 75k)

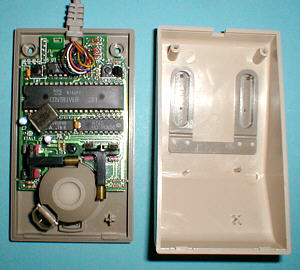

Contriver M3 Mouse: inside (click for larger image, 84k)

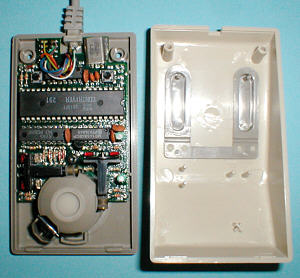

inside (click for larger image, 84k) 		Contriver M3 Mouse: inside (click for larger image, 88k)
inside (click for larger image, 88k)

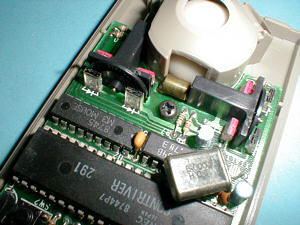

Contriver M3 Mouse: detail: circuitry (click for larger image, 98k)

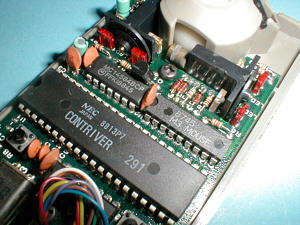

detail: circuitry (click for larger image, 98k) 		Contriver M3 Mouse: detail: circuitry (click for larger image, 88k)
detail: circuitry (click for larger image, 88k)
