Tatung Einstein TC-01
ManufacturerTatung
TypeProfessional Computer
Release date1984; 35 years ago (1984)
Introductory priceGB£499 (equivalent to £1,575 in 2018)
Media3-inch floppy disk
Operating systemXtal DOS
CPUZilog Z80 clocked at 4MHz
Memory64KB RAM, 16KB VRAM, 8KB-32KB ROM
Storage3 inch floppy Drive 1770 FDC
Display256 × 192 resolution, 16 colours
Input51 key Keyboard, Joystick
ConnectivityRS232
Dimensions43.5 × 51.5 × 11.5cm
SuccessorEinstein256

The Tatung Einstein is an eight-bit home/personal computer produced by Taiwanese corporation Tatung, designed in Bradford, England at Tatung's research laboratories and assembled in Bridgnorth and Telford, England. It was aimed primarily at small businesses.

History[edit]

The Einstein was released in the United Kingdom in the summer of 1984, and 5,000 were exported back to Taipei later that year. A Tatung monitor (monochrome or colour) and dot matrix printer were also available as options, plus external disc drives and an 80 column display card. It was also capable of emulating the Spectrum 48k with the "Speculator" addon.

More expensive than most of its rivals, the Einstein was popular with contemporary programmers but was commercially unsuccessful.[1]

A later, revised version, called the Tatung Einstein 256 suffered a similar fate.

Design[edit]

The machine was physically large, with an option for one or two built-in three-inch floppy disk drives manufactured by Hitachi. At the time, most home computers used ordinary tape recorders for storage. Another unusual feature of the Einstein was that on start-up the computer entered a simple machine code monitor, called MOS (Machine Operating System). A variety of software could then be loaded from disk, including a CP/M-compatible operating system called Xtal DOS (pronounced 'Crystal DOS', created by Crystal Computers in Torquay), and a BASIC interpreter (Xtal BASIC). Thanks to the reliability of the machine, and ample memory, the machine proved useful by many software houses to use for programming, and then porting the code to the machines they were made for, namely the Spectrum 48k, Amstrad CPC, and Commodore 64. Eventually, it was superseded by the PC and Atari ST as the development systems of choice.

The follow on machine, the Einstein256, basically was the same as the original, with improved video (Yamaha V9938) and a more slimline black case.

Technical specifications[edit]

TC-01
  • CPU: Zilog Z80A @ 4 MHz
  • 64K RAM
  • 8K to 32K ROM
  • Z84C30 CTC
  • Z84C20 PIO
  • intel 8251 SIO
  • 1770 FDC Floppy disk Controllers
  • Z80 'Tube' bus/interface
  • Analogue joystick Ports
  • RAM: 64 KB system RAM; 16 KB video RAM
  • Video: Texas Instruments TMS9129 16 colours, 32 sprite planes
  • Audio: AY-3-8910 (Also Reads keyboard Matrix)

Like the MSX specification

256
  • 64K User RAM 192K Video RAM
  • Video : V9938, 512 colours

See also[edit]

References[edit]

External links[edit]

Related to Tatung Einstein

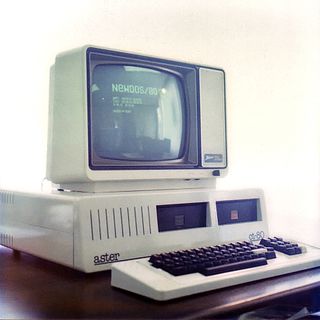

Aster CT-80

The Aster CT-80, an early (1982) home/personal computer developed by the small Dutch company MCP, was sold in its first incarnation as a kit for hobbyists. Later it was sold ready to use. It consisted of several Eurocard PCB's with DIN 41612 connectors, and a backplane all based on a 19-inch rack configuration. It was the first commercially available Dutch personal/home computer. The Aster computer could use the software written for the popular Tandy TRS-80 computer while fixing many of the problems of that computer, but it could also run CP/M software, with a big amount of free memory Transient Program Area, (TPA) and a full 80×25 display, and it could be used as a Videotext terminal. Although the Aster was a clone of the TRS-80 Model I it was in fact more compatible with the TRS-80 Model III, and ran all the software of these systems including games. It also had a built in speaker which was compatible with such games software.

Amstrad CPC

series of home computers produced by Amstrad

The Amstrad CPC is a series of 8-bit home computers produced by Amstrad between 1984 and 1990. It was designed to compete in the mid-1980s home computer market dominated by the Commodore 64 and the Sinclair ZX Spectrum, where it successfully established itself primarily in the United Kingdom, France, Spain, and the German-speaking parts of Europe.

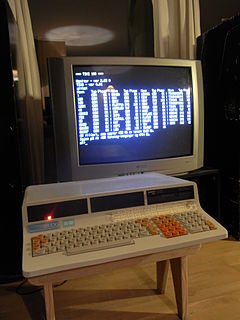

Tiki 100

home computer

Tiki-100 was a desktop home/personal computer manufactured by Tiki Data of Oslo, Norway. The computer was launched in the spring of 1984 under the original name Kontiki-100, and was first and foremost intended for the emerging educational sector, especially for primary schools. Early prototypes had 4 KB ROM, and the '100' in the machine's name was based on the total KB amount of memory.

SAM Coupé

home computer

The SAM Coupé is an 8-bit British home computer that was first released in late 1989. It was designed to have compatibility with and is commonly considered a clone of the Sinclair ZX Spectrum computer, since it features a compatible screen mode and emulated compatibility and was marketed as a logical upgrade from the Spectrum. It was originally manufactured by Miles Gordon Technology (MGT), based in Swansea in the United Kingdom.

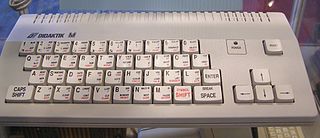

Didaktik

home computer

The Didaktik was a series of 8-bit home computers based on the clones of Intel 8080 and Zilog Z80 processors produced in former Czechoslovakia.

VTech Laser 200

The VTech Laser 200 was an early 8-bit home computer from 1983, also sold as the Salora Fellow, the Seltron 200 in Hungary and Italy, the Smart-Alec Jr. by Dynasty Computer Corporation in Dallas, Texas for the USA, the Texet TX8000A, and the Dick Smith VZ 200.

Enterprise (computer)

home computer

The Enterprise is a Zilog Z80-based home computer first produced in 1985. It was developed by British company Intelligent Software and marketed by Enterprise Computers. Its two variants are the Enterprise 64, with 64 kilobytes of Random Access Memory (RAM), and the Enterprise 128, with 128 KB of RAM.

Commodore CBM-II

The Commodore CBM-II series is a short-lived range of 8-bit personal computers from Commodore Business Machines (CBM), released in 1982 and intended as a follow-on to the Commodore PET series.

MicroBee

home computer

MicroBee was a series of networkable home computers by Applied Technology, which became publicly listed company MicroBee Systems Limited soon after its release.

SV-328

home computer

The SV-328 is an 8-bit home computer introduced by Spectravideo in June 1983. It was the business-targeted model of the Spectravideo range, sporting a rather crowded full-travel keyboard with numeric keypad. It had 80 KB RAM, a respectable amount for its time. Other than the keyboard and RAM, this machine was identical to its little brother, the SV-318.

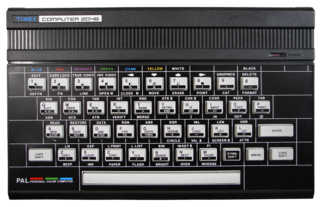

Timex Computer 2048

The TC-2048 or Timex Computer 2048 is a 1984 computer created by "Timex North American, Lda", a branch of Timex Corporation. It was based on the Timex Sinclair 2048 prototype, a 16k version of the TS-2068, with a similar redesign case, Kempston joystick interface and additional video modes.

Research Machines 380Z

The Research Machines 380Z was an early 8-bit microcomputer produced by Research Machines in Oxford, England, from 1977 to 1985.

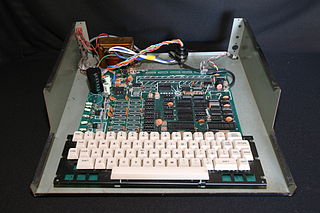

Dick Smith Super-80 Computer
